| Traction Weight: | 2000KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |

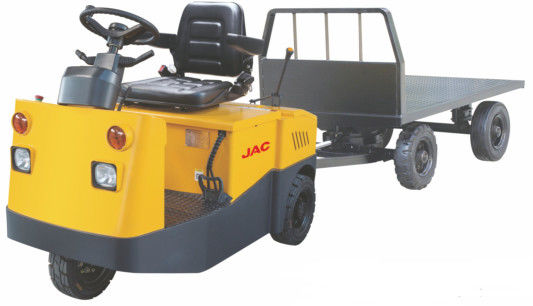

Tow Tractor With Traction Weight 2 Ton , Electric Tow Truck , Red or Yellow Color
Advantage:
● ”H”type axle design gives a good stability.
● Batteries located in the lowest part of frame, low center of gravity ensures excellent stability.
● Multi-function display: battery status, hour meter, error code etc.
● The application of hand brake and hydraulic brake improve the safety level.
● Easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.
Parameters:
| Model | QDD20 | |
| Drive type | Battery | |
| Rated traction weight (60 minutes rated) | kg | 2000 |
| Draw bar center height | h1/h2(mm) | 280/350 |
| Weight | kg | 1030 |
| Axle loading, front | kg | 330 |
| Axle loading, rear | kg | 650 |
| Tyre number front/rear | X=Driven wheels | 1/2X |
| Tyre size, front | solid rubber | 15*41/2-8 |
| Tyre size, rear | solid rubber | 15*41/2-8 |
| Rear hanging distance | L2(mm) | 350 |
| Seat height | h3(mm) | 850 |
| Overall length | L(mm) | 1720 |
| Overall width | W(mm) | 970 |
| Overall height | H(mm) | 1250 |
| Min. ground height | X(mm) | 90 |
| Min. turning radius | Wa(mm) | 1520 |
| Travel speed, laden/unladen | km/h | 8 |
| Wheel base | L1(mm) | 1170 |
| Max. gradeability(laden/unladen) | 6/15 | |
| Battery voltage, nominal capacity K5 | V/Ah | 48/240 |
| Battery weight | kg | 350 |
| Traction bolt | Traction bolt |
