Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1600KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 3m-5m | Controller: | Curtis Or PG |
| Highlight: | four wheel electric forklift,electric warehouse forklift |
||

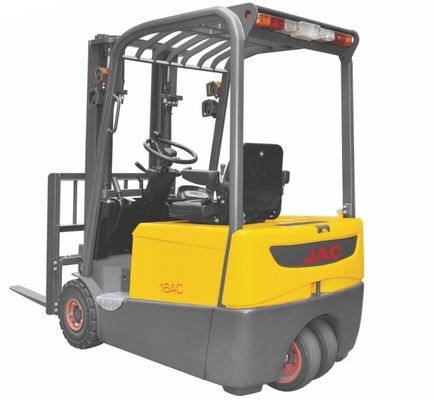

Electric Battery Operated Warehouse Forklift , Three Wheel Type , Load Capacity 1.6 Ton , Small Turning Radius
Advantages:
SAFETY AND STABLITY
1. Germany imported driving axle essures its high performance.
2. AC control system CURTIS controller, sensitive in reaction.
3. According to different needs low speed, moderate speed and high speedm,three running modes can be adopted.
4. Wet disk brake equipment can make the forklift break stablity, ensure high durability and safety.
5. Multifunctional display which can show the user its using time , fault code, battery status, forklift running information.
6. AC driving motor without carbon brush, free of maintenance.
7. Very small turning radius 1552mm and minimum right angle stacking aisle 3220mm.
8. AC motor with regenerative braking system.
ERGONOMICS
1. Two step pedals makes it easy to get into the driving cab.
2. With adjustable steering wheel column, the driver can adjust the position according to his need.
3. Clearly and wide view mast with good visibility.
4. Emergency power cut off plug for emergency stop.
5. ABS instrument board in the driving-box is durable and beautiful.
6. The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
7. Integrated light switch and steering wheel make it easy to operate.
SERVICE ABILITY
1. Easily maintained controller and steering potentiometer.
2. Over discharge protecting system: While the battery discharges less than 20%, the instrument warming light will be on.
3. Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
4. Lifting and driving AC motors without carbon brush, free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
5. Side way battery box is easy to change and to charge. it is safe and convenient.
6. Maintenance free wet disk brake.
Parameters:
| Model | CPD20SA-16 | |
| Drive | Dual Front Drive Wheel | |
| Operation type | seated | |
| Load capacity/rated load | Q(kg) | 1600 |
| Load center distance | c(mm) | 500 |
| Load distance,center of drive axle to fork | x(mm) | 358 |
| Wheelbase | y(mm) | 1362 |
| Service weight (with battery) | kg | 3220 |
| Axle loading,laden front/rear | kg | 3955/865 |
| Axle loading,unladen front/rear | kg | 1425/1795 |
| Tyres:solid rubber, superelastic, pneumatic,polyurethane | super elastic solid tires | |
| Tyre size, front | 18×7-8 | |
| Tyre size, rear | 15×41/2-8 | |
| Wheels,number front rear(x=driven wheels) | 2x/2 | |
| Tread,front | b10(mm) | 920 |
| Tread,rear | b11(mm) | 165 |
| Tilt of mast/fork carriage forward/backward | . | 3/6 |
| Height,mast lowered | h1(mm) | 2000-2660 |
| Free lift | h2(mm) | option |
| Lift Height | h3(mm) | 3000-6200 |
| Height,mast extended | h4(mm) | 4050-7250 |
| Height of overhead guard(cabin) | h6(mm) | 2005 |
| Seat height/stand height | h7(mm) | 938 |
| Coupling height | h10(mm) | 560 |
| Overall length | l1(mm) | 2880 |
| Length to face of forks | l2(mm) | 1930 |
| Overall width | b1(mm) | 1070 |
| Fork dimensions | s/e/l(mm) | 35/100/950 |
| Fork carriage DIN 15173,class/type A,B | 2A | |
| Fork-carriage width | b3(mm) | 1088 |
| Ground clearance,laden,below mast | m1(mm) | 90 |
| Ground clearance,centre of wheelbase | m2(mm) | 100 |
| Aisle width for pallets 1000*1200 cross-ways | Ast(mm) | 3120 |
| Aisle width for pallets 800*1200 length-ways | Ast(mm) | 3220 |
| Turning radius | Wa(mm) | 1552 |
| Travel speed,laden/unladen | Km/h | 14/14 |
| Lift speed,laden/unladen | mm/s | 290/450 |
| Lowering speed, laden/unladen | mm/s | <600 |
| Max.gradeability,laden/unladen | % | 15/20 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/420(490) |
| Battery weight | kg | 720 |
| Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | 68 |
