Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1500KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 180-200mm | Controller: | Curtis Or PG |
| Highlight: | electric walkie pallet jack,electric power pallet jack |
||

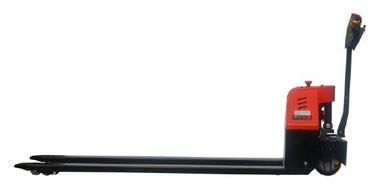

Electric Waing Pallet Truck With Load Capacity 1.5 Ton , Economic Warehouse Forklift Equipment
E Series
E Series is an economical pedestrian power pallet truck with maximum capacity of 1500kg. The truck is with attractive appearance, compact structure, convenient operation, and energy saving. It is widely used in conditions of low intensity and short distances, meeting the demands of most customers.
Advantages:
1. Short turning radius and low gravity center of the truck make the steering stable.
2. Germany imported waterproof micro-switches are applied in the cold, damp, dusty and other harsh environments.
3. Permanent magnet motor drive system is with small size, light weight, low loss and high efficiency.
The turtle speed switch on the handle makes low speed control more precise.
4. Four colored LED battery meter. The operator can intuitively know the remaining battery power by successively displayed colors -- green, blue, orange, and red.
5. Pneumatic spring in the handle. Releasing the handle, it can be automatically slow reset.
Parameters:
| Model | Unit | CBDE15 | CBDE15 (Low type) |
| Load capacity | kg | 1500 | 1500 |
| Overall fork width | mm | 560/685 | 560/685 |
| Fork length | mm | 1150 | 1150 |
| Single fork width | mm | 150 | 150 |
| Lowered fork height | mm | 85 | 65 |
| Max. lifting height | mm | 200 | 180 |
| Overall length | mm | 1624 | 1624 |
| Overall width | mm | 560/685 | 560/685 |
| Overall height | mm | 1174 | 1174 |
| Front wheel size, number | Φ80×60,4 | Φ60×60,4 | |
| Drive wheel size, number | Φ210×70,1 | Φ210×70,1 | |
| Turing radius | mm | 1440 | 1440 |
| Load center distance | mm | 600 | 600 |
| Lift motor | 24V/0.8KW | 24V/0.8KW | |
| Drive motor | 24V/0.75KW | 24V/0.75KW | |
| Battety voltage | 2x12V/65AH | 2x12V/65AH | |
| Working time of fully charged battery | h | 3.5 | 3.5 |
| Sevice weight (without battery) | kg | 230 (190) /190 (150) | 185 (145) /225 (185) |
