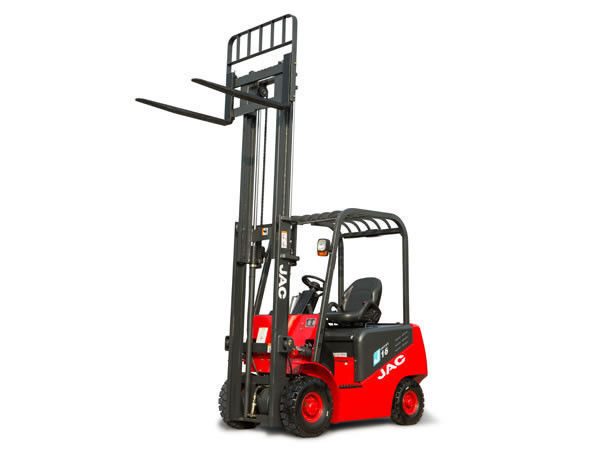

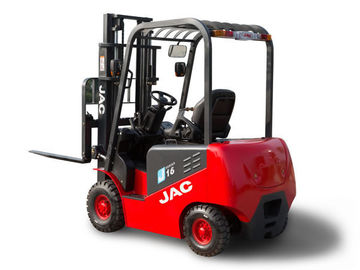

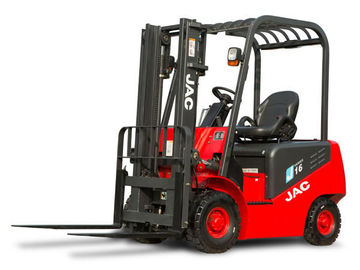

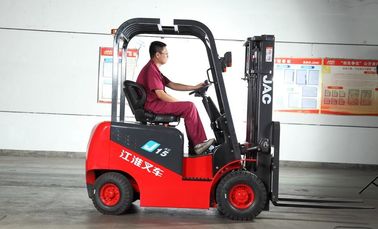

Four Wheel Conterbalance Electric Forklift Truck With Lead Acid Battery
-
-
Large Image :
Four Wheel Conterbalance Electric Forklift Truck With Lead Acid Battery
|
Product Details:
Place of Origin: |
CHINA |
Brand Name: |
JAC |
Certification: |
CE,ISO9001,ISO14001,OHSAS18001 |
Model Number: |
CPD16 |
Payment & Shipping Terms:
Minimum Order Quantity: |
1UNIT |
Price: |
negotiable |
Delivery Time: |
25 working days |
Payment Terms: |
L/C, T/T |
Supply Ability: |
1000UNITS/Month |
|
Detailed Product Description
Load Capacity: |
1600KG |
Target Market: |
Global Market |
Power: |
Electricity |
Color: |
Red |
Controller: |
Curtis Or Imotion |
Lift Height: |
3m-6m |
HS CODE: |
8427109000 |
Warranty: |
One Year |
Electric Forklift Truck , Load Capacity 1.6 Ton , Four Wheel Conterbalanced Forklift , Lead Acid Battery
Features:
- The JAC electric forklift with AC drive has an enclosed instrument panel, protective lampshade, and dual rearview mirrors.
- The foot brake pedal is installed slightly higher than the Curtis kernel accelerator for a ergonomic design.
- Comfortable seating features an adjustable backrest, elastic seatbelt and mechanical shock absorber installed at the base of the seat.
- Batteries with different capacities are available.
- The shock-absorbing steering axle of our fork truck greatly improves the comfort level of operation.
- All cables are equipped with insulating caps and are insulated and waterproof.
- Horizontally arranged transmission device enhances driving efficiency and prolongs the duration of the battery.
- Wide-opening counterweight makes it convenient to repair the controller.
- Rear-mounted lifter motor is easy to repair.
- The high-performance power supply of our electric powered forklift truck is easy to plug and unplug.
- One-piece framework improves strength.
- Streamlined design includes an integrated tail lamp.
- Curtis LED screen displays important information directly so the operator can troubleshoot problems quickly.
- Controller imported from the brand Curtis.
- The steering wheel's short diameter makes it lightweight and easy to maneuver.
- Receipts, invoices, and other files can be stored inside the right side of engine hood.
- The JAC lift truck's main power supply switch protects the electrical control system and prevents accidents.
- New foot brake with good friction shortens the braking distance by l-1.3m.
Parameters:
Model |
Unit |
CPD16J |
1 |
Load Capacity |
kg |
1600 |
2 |
Load Center |
mm |
500 |
3 |
Mast Lifting Height |
mm |
3000 |
4 |
Mast Free Lifting |
mm |
120 |
5 |
Fork |
mm |
920×100×40 |
6 |
Mast Tilt( FR/RR) |
. |
6/10 |
7 |
Turning Radius |
mm |
2030 |
8 |
Ground Clearance |
mm |
93 |
9 |
Height of Overhand Guard |
mm |
1020 |
10 |
Overhang (FR) |
mm |
407 |
|
Max.Speed(load) |
km/h |
12 |
12 |
Max.Lifting Speed(load) |
mm/s |
260(BC) |
300(AC) |
13 |
Max. Gradeability |
% |
15 |
15 |
14 |
Overall length(No fork) |
mm |
2220 |
15 |
Overall Width |
mm |
1072 |
16 |
Wheelbase |
mm |
1370 |
17 |
Tread |
Fron/Rear |
mm |
894/920 |
18 |
Service Weight |
kg |
3000 |
19 |
Battery |
Voltage/Capacity |
V/Ah |
48/400 |
20 |
Motor |
Traveling |
KW |
8 |
21 |
Lifting |
KW |
7.5 |
10 |
22 |
Way of Control |
|
BC |
AC |
23 |
Operating Pressure |
Mpa |
15.5 |
24 |
Max.Drawbar Pull |
KN |
13 |
