| Load Capacity: | 3500KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red |
| Controller: | Curtis Or Imotion | Lift Height: | 3m-6m |

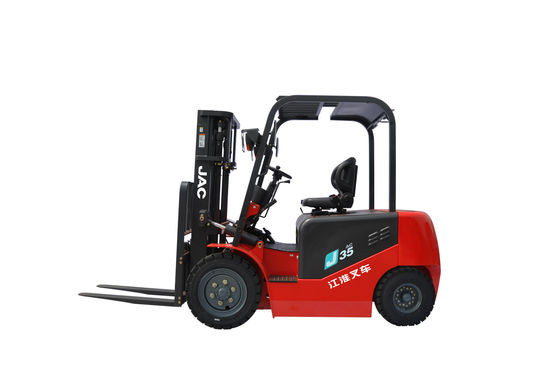

Powerful Electric Forklift , Large Capacity , Lifting Capacity 3.5Ton , Optional Red Color
Electric forklift are powered by electric motors, and operate via robust traction batteries with a long service life.
Using an electric forklift, you have no need to worry about the noise and exhaust gas pollution. As people attaching importance to environmental protection, electric forklift are gradually replacing the internal combustion forklifts.
Advantages:
1. The foot brake pedal is installed slightly higher than the Curtis kernel accelerator for a ergonomic design.
2. Comfortable seating features an adjustable backrest, elastic seatbelt and mechanical shock absorber installed at the base of the seat.
3. Batteries with different capacities are available.
4. The shock-absorbing steering axle of our fork truck greatly improves the comfort level of operation.
5. All cables are equipped with insulating caps and are insulated and waterproof.
6. Horizontally arranged transmission device enhances driving efficiency and prolongs the duration of the battery.
7. Wide-opening counterweight makes it convenient to repair the controller.
8. Rear-mounted lifter motor is easy to repair.
9. The high-performance power supply of our electric powered forklift truck is easy to plug and unplug.
10. One-piece framework improves strength.
11. Streamlined design includes an integrated tail lamp.
12. Curtis LED screen displays important information directly so the operator can troubleshoot problems quickly.
13. Controller imported from the brand Curtis.
14. The steering wheel's short diameter makes it lightweight and easy to maneuver.
15. Receipts, invoices, and other files can be stored inside the right side of engine hood.
16. The JAC lift truck's main power supply switch protects the electrical control system and prevents accidents.
17. New foot brake with good friction shortens the braking distance by l-1.3m.
.
Parameters:
| Model | Unit | CPD35J | |||
| 1 | Load Capacity | kg | 3500 | ||
| 2 | Load Center | mm | 500 | ||
| 3 | Mast Lifting Height | mm | 3000 | ||
| 4 | Mast Free Lifting | mm | 70 | ||
| 5 | Fork | mm | 1070×125×50 | ||
| 6 | Mast Tilt( FR/RR) | . | 6/12 | ||
| 7 | Turning Radius | mm | 2520 | ||
| 8 | Ground Clearance | mm | 120 | ||
| 9 | Height of Overhand Guard | mm | 980 | ||
| 10 | Overhang (FR) | mm | 492 | ||
| Max.Speed(load) | km/h | 12 | |||
| 12 | Max.Lifting Speed(load) | mm/s | 260(BC) | 260(AC) | |
| 13 | Max. Gradeability | % | 10 | 10 | |
| 14 | Overall length(No fork) | mm | 2603 | ||
| 15 | Overall Width | mm | 1250 | ||
| 16 | Wheelbase | mm | 1700 | ||
| 17 | Tread | Fron/Rear | mm | 1000/990 | |
| 18 | Service Weight | kg | 5400 | ||
| 19 | Battery | Voltage/Capacity | V/Ah | 80/550 | |
| 20 | Motor | Traveling | KW | 16.6 | |
| 21 | Lifting | KW | 13 | 13.5 | |
| 22 | Way of Control | BC | AC | ||
| 23 | Operating Pressure | Mpa | 18.5 | ||
| 24 | Max.Drawbar Pull | KN | 21 | ||
