Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 2000KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 6.5m | Controller: | Curtis Or PG |
| Free Lift: | 2240mm | Turning Radius: | 1735mm |

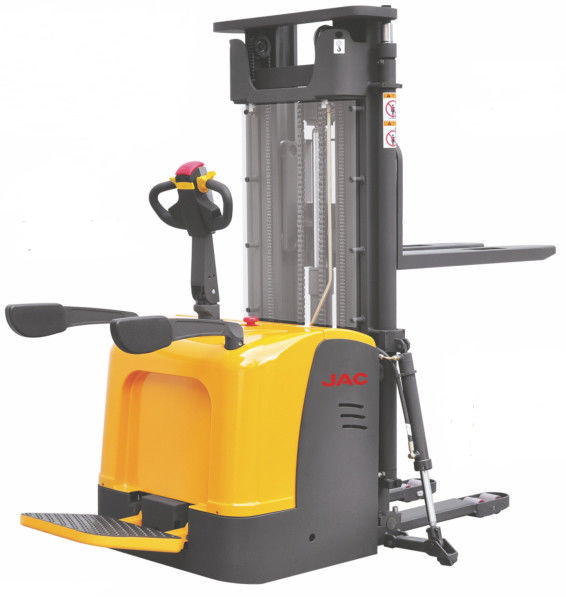

Electric Straddle Pallet Stacker , Load Capacity 2 Ton , Narrow Aisle Forklift , Stand-on Type , 6.5m Lift Height
SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates carbon brush replacement.
• Multi-function display with BDI and hour meter.
• Side way battery is easy to maintain.
• Damping cushion for low-noise operation.
• Emergency reversing device equipped handle to keep safe.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
• With brake in handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Stepless speed control.
OPTIMUM STRUCTURAL DESIGN:
• Low barycenter ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius.
The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.
• Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door).
SERVICEABILITY:
• Low voltage protection setting prolongs the battery use time.
• The electronic components’ concentrated design simplifies the circuit and makes easy access to assemble, debug and maintain.
• CANbus technology reduces wiring complexity and increase reliability.
• Hall element reduces wear components, resulting in increased component life.
Parameters:
| Model | CDDR20(6.5m) | |
| Load capacity | Q(kg) | 2000 |
| Load center | c(mm) | 500 |
| Load distance | x(mm) | 672 |
| Tyre size, front | mm | Φ250×70 |
| Tyre size, rear | mm | Φ80×84 |
| Additional Wheels(dimensions) | mm | Φ150×60 |
| Wheels, number front rear(x=driven wheels) | 1x+2/4 | |
| Height, mast lowered | H1 | 2710 |
| Free lift (option) | H2 | 2240 |
| Max. lift height | h3(mm) | 6500 |
| Height, mast extended | h4(mm) | 7050 |
| Height of tiller in drive position min./max | h14(mm) | 1150/1450 |
| Fork height, lowered | h13(mm) | 90 |
| Overall length | l1(mm) | 2100/2180 |
| Length to face forks | l2(mm) | 950 |
| Overall width | b1(mm) | 950 |
| Fork dimensions | s/e/l(mm) | 60/180/1070(1150) |
| Width overall forks | b5(mm) | 570/695 |
| Aisle width for pallets 800×1200 crossways | Ast(mm) | 2595 |
| Turning radius | Wa(mm) | 1735 |
| Travel speed, laden/unladen | Km/h | 5.8/6 |
| Lift speed, laden/unladen | m/s | 0.09/0.11 |
| Lowering speed, laden/unladen | m/s | 0.12/0.11 |
| Battery voltage, nominal capacity K5 | V/Ah | 24/300 |
| Battery weight | kg | 300 |
| Battery dimensions l/w/h | mm | 675x254x500 |
| Service weight(with battery) | kg | 1850 |
