Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1500KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Motor: | AC Motor | Max Lift: | 3.3 M |
| Highlight: | ride on pallet stacker,walk behind pallet stacker |
||

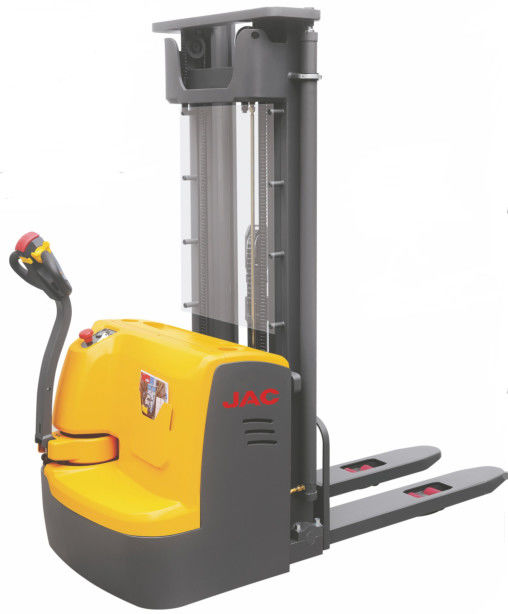

Electric Walkie Stacker With Load Capacity 1.5 Ton ,WarehouseForklift , Economic Type , Lift Height From 1.6m to 3.3m
Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
Advantages:
STRUCTURAL AND SAFETY :
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and fault code etc.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking .
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Standing driving motor system has a small turning radius. The motor structure is water-proof and dust-proof.
SERVICEABILITY:
• CANbus technology reduces wiring complexity and increase reliability.
• Advanced AC control system with brushless motor .
• Auto deceleraion system utilises regenerative braking .
• Side-way battery with roll-out system is very convenient for replacement.
Parameters:
| Model | CDDW15-Ⅲ | |
| Load capacity | Q(kg) | 1500 |
| Load centre distance | c(mm) | 600 |
| Load distance, centre of drive axle to fork | x(mm) | 697 |
| Fork height, lowered | h13(mm) | 90 |
| Tyre size, front | mm | φ250×70 |
| Tyre size, rear | mm | φ80×70 |
| Additional wheels(dimensions) | mm | φ150×60 |
| Wheels, number front rear(x=driven wheels) | 1x+1/4 | |
| Height, mast lowered | h1(mm) | 2087/1837/2087/2237 |
| Free lift(option 2500~3500mm) | h2(mm) | ~ |
| Max. lift height | h3(mm) | 1600/2500/3000/3300 |
| Height,mast extended | h4(mm) | 2087/3087/3587/3887 |
| Height of tiller in drive position min./max. | h14(mm) | 670/1300 |
| Overall width | b1(mm) | 2045 |
| Overall length | l1(mm) | 878 |
| Length to face of forks | l2(mm) | 820 |
| Fork dimensions | s/e/l(mm) | 60/170/1070(1150) |
| Width overall forks | b5(mm) | 570/695 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2450 |
| Turning radius | Wa(mm) | 1605 |
| Travel speed, laden/unladen | Km/h | 5.8/6 |
| Lift speed, laden/unladen | m/s | 0.06/0.13 |
| Lowering speed, laden/unladen | m/s | 0.13/0.10 |
| Battery voltage,nominal capacity K5(Duplex Mast) | V/Ah | 24/200 |
| Battery voltage,nominal capacity K5(Triplex Mast) | V/Ah | ~ |
| Battery weight | kg | 160 |
| Battery dimensions l/w/h | mm | 800x254x320 |
| Service weight(with battery) | kg | 760/810/835/860 |
