| Load Capacity: | 2500KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Highlight: | powered pallet truck,electric walkie pallet jack |
||

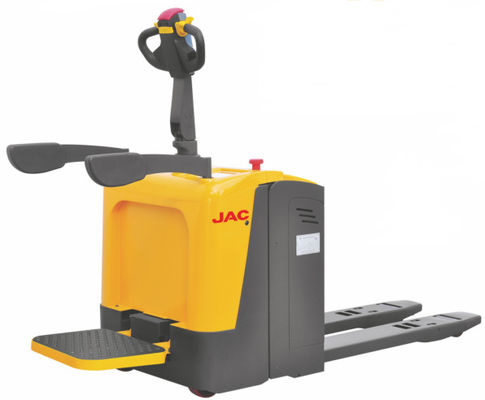

Electric Rider Pallet Truck , Large Capacity Truck , Loading Capacity 2.5 Ton , Stand-on type , Indoor Forklift
CBD25R is the stand-on type platform Pallet Truck, with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport.
Standard features:
• Germany FREI Tiller Hand
• Emergency stop & belly button
• BDI and hour meter
• Casters to balance stability
• Industrial battery
• Brushless AC motor
• Vertical driving wheel
• Sideway battery change
• Out side Charger
• Platform with speed sensor
Option:
• Fork width and length(size)
• Load backrest
• Built-in Charger
• Customized battery compartment
• Entry & exist roller for empty pallets
• EPS
• Large compartment with battery capacity 400Ah, drive speed 10KM/H
Battery 240Ah/400Ah; Drive speed 9.5-10km/h
Option with EPS drive wheel size is 250x80mm
Parameters:
| Model | CBD25R-II | |
| Load capacity | Q(kg) | 2500 |
| Load centre distance | c(mm) | 600 |
| Load idetance,centre of drive axle to fork | x(mm) | 815/865/935 |
| Fork height,lowered | h13(mm) | 82 |
| Tyre size, front | mm | Φ250×70 |
| Tyre size, rear | mm | Φ82×126(98) |
| Additional wheels(dimensions) | mm | Φ127×57 |
| Wheels, number front rear(x=driven wheels) | 1X+2/2(4) | |
| Max.lift height | h3(mm) | 202 |
| Height of tilier in drive position min./max | h14(mm) | 1150/1430 |
| Overall length | l1(mm) | 1710/1760/1830 |
| Length to face of forks | l1(mm) | 610 |
| Overall width | b1(mm) | 775 |
| Fork dimensions | s/e/l(mm) | 53×180×1100(1150/1220) |
| Width overall forks | b5(mm) | 520/550/650/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1910/1960/2030 |
| Aisle width for pallets 800×1200 crossways | Ast(mm) | 2010/2010/2030 |
| Turning radius | Wa(mm) | 1550/1600/1670 |
| Travel speed,laden/unladen | Km/h | 7/7.1 |
| Battery voltagem,nominal capacity K5 | V/Ah | 24/240 |
| Battery weight | kg | 240 |
| Battery dimensions l/w/h | mm | 750×170×570 |
| Service weight(with battery) | kg | 750 |
