Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 2000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Manual And Electricity | Color: | Red Or Yellow |
| Highlight: | electric walkie pallet jack,electric power pallet jack |
||

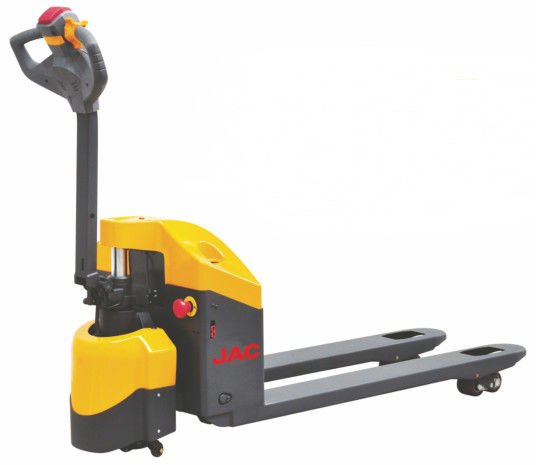

Semi-electric Powered Pallet Truck With Load Capacity For 2 Ton , Large Capacity , Red or Yellow Color
Advantages:
• Permanent magnet brushless motor with high electric efficiency, maintenance free.
• Gradient performance is high.
• With smallest turning radius.
• Full sealed battery free to maintain, big capacity 24v/65AH fit for high intensity use.
• Traction speed is consistency under laden or unladen, improve productive efficiency.
• Horizontal drive wheel provides convenient replacement.
• Stepless speed control.
• Floating balance wheel is automatic adjust height, prevents shaking when unload.
• Built-in charger.
Parameters:
| Model | CBD20A | ||
| Load capacity | Q(kg) | 2000 | |
| Load centre distance | c(mm) | 600 | |
| Fork height, lowered | h13(mm) | 87/77 | |
| Tyre size, front | mm | Φ195 | |
| Tyre size, rear | mm | Φ85/Φ75 | |
| Max. lift height | h3(mm) | 190/180 | |
| Height of tiller in drive position min./max. | h14(mm) | 770/1254 | |
| Overall length | l,(mm) | 1644/1714 | |
| Length to face of forks | l2(mm) | 490 | |
| Fork dimensions | s/e/l(mm) | 60/160/1150(1220) | |
| Width overall forks | b5(mm) | 520/550/680 | |
| Aisle width for pallets 1000×1200 crossways | As,(mm) | 1844/1914 | |
| Aisle width for pallets 800×1200 lengthways | As,(mm) | 1894/1914 | |
| Turning radius | Wa(mm) | 1445/1515 | |
| Travel speed, laden/unladen | Km/h | 5/5.5 | |
| Battery voltage, nominal capacity K20 | V/Ah | 24/105 | |
| Battery weight | Kg | 49 | |
| Service weight(with battery) | Kg | 220 | |
