Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1500KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 2.5m-5.6m | Controller: | Curtis Or PG |
Three Wheel Forklift With Load Capacity 1.5 Ton , Economic Type , Warehouse Forklift , Smaller Turning Radius
Advantages:
• Using Jac self developed rear wheel driven design, with stable quality, small turning radius, and very good pass through abilities.
• Rated capacity is 1500kg with side shift, all panels use steel plate with compact appearance and good durability.
• All panels and covers are made by steel, they are in good durability.
• With Sideway battery moving system, it is easy for battery changing.
• Two lifting cylinder on both side of mast, ensure good visibility and high stability.
• Using rubber wheel with good shock proof, low noise suitable for indoor and outdoor use on different ground.
• Rear driving system, smart design with small turning radius and goods pass through, have good performance.
• Use AC motor without brush, free of maintenance.
• High gradeability up to 10% with full laden.
• The electric brake is used as the parking brake, which is easy to operate and safe.
• Use hydraulic power steering is for light steering, have the function of steering priority.
• Have option of cold-storage, full AC control system.
Parameters:
| MODEL | CPD15S-E | |
| Drive | Rear Wheel Drive | |
| Operation type | Seated | |

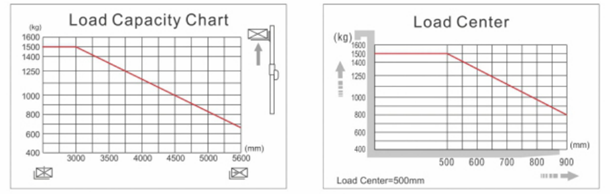

| Capacity/rated load | Q(kg) | 1500 |
| Load centre distance | c(mm) | 500 |
| Load distance, centre of drive axle to fork | x(mm) | 170 |
| Wheelbase | y(mm) | 1348 |
| Service weight(without battery) | Kg | 2500 |
| Axle loading, front/rear | Kg | 3280/710 |
| Axle loading, unladen font/rear(with max battery) | Kg | 975/1525 |
| Tyre size, front | super elastic solid tires | 305×140 |
| Tyre size, rear | super elastic solid tires | 285×160 |
| Wheels, number front | 2 | |
| Wheels, number rear | 1 | |
| Tread, front | b10(mm) | 912 |
| Tread,rear | b11(mm) | 0 |
| Tilt of mast/fork carriage forward | . | 2 |
| Tilt of mast/fork carriage backward | 5 | |
| Height, mast extended | h1 (mm) | 1980(3m) |
| Free lift | h2(mm) | option |
| Lift height | h3(mm) | 2500-5600 |
| Height, mast extended | h4(mm) | 3500-6600 |
| Overall width | b1(mm) | 1055 |
| Fork thickness | s(mm) | 35 |
| Fork width | e(mm) | 100 |
| Fork length | l(mm) | 950(1070) |
| Fork carriage din 1573, calss/type A,B | A | |
| Fork-carriage width | b3(mm) | 680 |
| Ground clearance, laden, below mast | m1(mm) | 68 |
| Ground clearance, centre of wheelbase | m2(mm) | 68 |

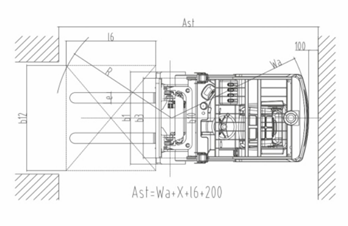

| Aisle width for pallets 800×1200 crossways | Ast(mm) | 3050 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3150 |
| Turning radius | Wa(mm) | 1550 |
| Travel speed, ladn/unladen | km/h | 6.8/7 |
| Lift speed, laden/unladen | mm/s | 100/150 |
| Climbing capacity, laden/unladen | % | 10/10 |
| System pressure | bar | 140 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 320(400) |
| Battery weight | kg | 300 |
| Sound level at the driver’s ear acc.to din 12053 | Db(A) | 68 |
