| Load Capacity: | 3000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Fork Size: | 54x180x1100(1150/1220) | Controller: | Curtis |
| Highlight: | powered pallet truck,electric walkie pallet jack,electric power pallet jack |
||

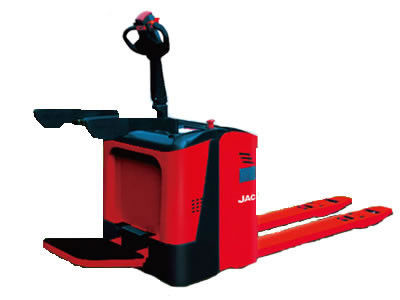

Electric Rider Pallet Truck With Load Capacity 3 Ton , People Stand-on Type , AC Power System , Indoor Forklift
Advantages:
1. The adoption of the floating balancing wheel can prevent lateral oscillation of the pallet truck when it is running. Paths without problems and without any oscillation. Great anti-vibration.
2. The stabilizer wheels can be easily removed for maintenance.
3. The integral structure of the rock arm mechanism improves the strength of the structure effectively, meanwhile, it shares and evenly adjusts 4.The strength of the fork. Reduces obvious bending in fork height after prolonged use.
5. The drive wheel adopts the horizontal structure of the type that makes the position of the engine disposition above ground to prevent: water, dust and greasy dirt sticking from the engine, effectively and improving the operating conditions of the engine.
6. The pallet truck is equipped with a height limit switch. It cuts the lifting circuit, when the lifting height approaches the highest point, to
disconnect the power of the hydraulic unit and avoid the noise of the output and save the energy caused by the spill.
Parameters:
| Model | CBD30R-II | |
| Lift capacity | Q(kg) | 3000 |
| Load centre distance | c(mm) | 600 |
| Load distance, centre of drive axle to fork | x(mm) | 815/865/935 |
| Fork height, lowered | h13(mm) | 82 |
| Tyre size, front | mm | Φ250×70 |
| Tyre size, rear | mm | Φ82×126(98) |
| Additional wheels(dimensions) | mm | Φ127×57 |
| Wheels, number front rear(x = driven wheels) | 1x+2/2(4) | |
| Max. lift height | h3(mm) | 202 |
| Height of tiller in drive position min./ max. | h14(mm) | 1150/1430 |
| Overall length | l1(mm) | 1710/1760/1830 |
| Length to face of forks | l2(mm) | 685 |
| Overall width | b1(mm) | 775 |
| Fork dimensions | s/e/l(mm) | 54x180x1100(1150/1220) |
| Width overall forks | b5(mm) | 520/550/650/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1985/2035/2105 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2085/2085/2105 |
| MinTurning radius | Wa(mm) | 1550/1600/1670 |
| Travel speed, laden/ unladen | km/h | 7/7.1 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/240(280) |
| Battery dimensions l/w/h | mm | 650x247x505(535) |
| Battery weight | kg | 240(280) |
| Service weight (with battery) | kg | 780 |
