Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1200KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 2.5m-5.6m | Controller: | Curtis Or PG |

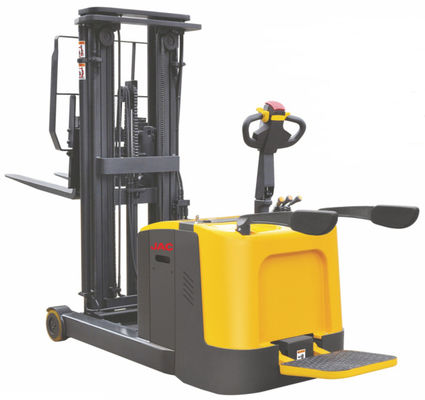

Reach Stacker Truck , Load Capacity 1.2 Ton , Forwarding Mast / Stand-on Type , Narrow Aisle Lift Trucks , Red Color
STRUCTURAL:
• Two lifting cylinders placed on outer sides of the mast.
• Germany imported special steel mast.
• Vertical driving wheel, driving efficiency , easy installation & maintenance.
• Compact structure and low gravity.
SAFETY AND EFFICIENCY:
• AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
• Tilting system forks easy for loading and stacking.
• High Storage battery ensures strong and long-lasting power.
• Meter with BDI , prolonging the battery’s using time.
• The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate.
• With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
• The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE:
• Magnet suction for battery cover, easy for installation and maintenance.
• AC controlling system, low noise, less maintenance.
Parameters:
| Model | CQD12R | |
| Load capacity | Q(kg) | 1250 |
| Load center | c(mm) | 500 |
| Load distance | x(mm) | 430 |
| Tyre size, front | mm | Φ250×70 |
| Tyre size, rear | mm | Φ210×85 |
| Balance wheel size | mm | Φ150×60 |
| Wheels, number front rear ( x=driven wheels) | 1x+ 2/2 | |
| Mast/ Forks obliquity front/back | ° | 3/6 |
| Height, mast closed | h1(mm) | 1820/2070/2320/1920/2080/2250/2420 |
| Free lift (option) | h2(mm) | 0/0/0/1386/1550/1720/1886 |
| Max. lifting height | h3(mm) | 2500/3000/3500/4000/4500/5000/5500 |
| Height, mast extended | h4(mm) | 3300/3800/4300/4800/5300/5800/6300 |
| Height of tiller in drive position min./ max. | h14(mm) | 1160/1460 |
| Overall length | l1(mm) | 2150 |
| Length to face of fork | l2(mm) | 1200 |
| Overall width | b1(mm) | 990 |
| Fork dimension | s/e/l(mm) | 35/100/950(1070/1150) |
| Fork carriage width | b3(mm) | 220-680 |
| Reach distance | l3(mm) | 560 |
| Aisle width for pallets 800×1200 length ways | Ast(mm) | 2650 |
| Turning radius | Wa(mm) | 1650 |
| Travel speed, laden/ unladen | kw/h | 6.8/7 |
| Lifting speed, laden/ unladen | m/s | 0-0.13/0-0.16 |
| Lowering speed, laden/ unladen | m/s | 0-0.45 |
| Battery volts./ Cap. | v/ah | 24/270 |
| Battery weight | kg | 260-320 |
| Battery dimensions (l*w*h) | mm | 825x213x590 |
| Service weight (with battery) | kg | 1800 |
