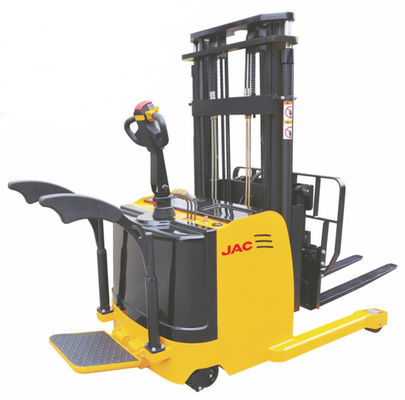

Single Scissor Stand Up Electric Forklift 1.2 Ton With Small Turning Radius
Detailed Product Description
| Load Capacity: |
1200KGS |
Warranty: |
One Year |
| Power: |
Electricity |
Color: |
Red Or Yellow |
| Lift Height: |
3.3m-6.3m |
Controller: |
Curtis Or PG |
Electric Reach Stacker With Loading Power 1.2 Ton , Single Scissor Type / Stand-on Type
Advantages:
• Compact structure are specially suit to use in very narrow Aisle warehouse.
• Low gravity, ensure safety operation.
• With disassemble type platform and protection arm.
• Use hydraulic type multi-valve to control l lifting/lowering , fork reach , fork tilting.
• Use Handle to control the truck forward and backward.
• The mast and frame are dividable and exchangeable.
• With small turning radius , with good operation performance.
• Multi function display with BDI and hour meter.
• Single Scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A)
Parameters:
| Model | | CQDH12A-I(single scissor) |
| Load capacity/rated load | Q(kg) | 1250 |
| Load centre distance | C(mm) | 500 |
| Load distance, centre of drive axle to fork | X(mm) | 365(double mast)/353(triple mast) |
| Tyre size, front | mm | Φ250×80+150×62 |
| Tyre size, rear | mm | Φ150×82×2 |
| Wheels, number front rear(x=driven wheels) | | 1x+2/2 |
| Forks, tilt forward/back | . | 2/5 |
| Height, mast lowered | h1(mm) | 1853/2103/2353/2603/2163/2323/2483 |
| Free lift | h2(mm) | ~/~/~/~/1575/1700/1825 |
| Max. lift height | h3(mm) | 2500/3000/3500/4000/4500/5000/5500 |
| Height,mast extended | h4(mm) | 3381/3881/4381/4881/5381/5881/6381 |
| Overall length | l1(mm) | 2327/2327/2327/2327/2340/2340/2340 |
| Length to face of forks | l2(mm) | 1257/1270 |
| Overall width | b1/b2(mm) | 1166-1266/950 |
| Fork dimensions | s/e/l(mm) | 35/100/1070 |
| Reach distance | l4(mm) | 500 |
| Aisle width for pallets 1000×1200 crosswise | Ast(mm) | 2731¹/2740² |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2783¹/2794² |
| Turning radius | Wa(mm) | 1658 |
| Travel speed,laden/unladen | Km/h | 4.5/5 / 4.8/5 |
| Lift speed,laden/unladen | m/s | 0.12/0.15 |
| Lowering speed,laden/unladen | m/s | 0.27/0.2 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/320 |
| Battery weight | kg | 285 |
| Battery dimensions | mm | 812x270x535 |
| Service weight(with battery) | kg | 1800/1850/1900/1900/1950/2000/2050 |
