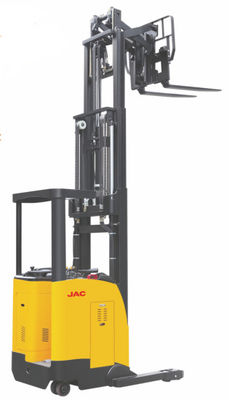

Narrow Aisle Fork Reach Truck With Load Capacity 1.5 Ton , Seated Type , Single Scissor , Lift Height From 3m to 6.5m
SAFETY AND STABILITY:
• Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
• Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
• Equipped with adjustable hand-rest, adapted to different operator.
• Multi-function display: battery state, hour meter, fault indicator etc.
• Two sides-way battery with roll-out system is very convenient to replace batteries.
• Damping cushion for low-noise operation.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
STRUCTURAL:
• Low Center of Gravity ensures the stable operation.
• Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
• The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.
SERVICEABILITY:
• Low battery protection setting prolongs the battery use time.
• CANbus technology reduces wiring complexity and increase reliability.
• All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
• The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.
Parameters:
| Model | CQDH15C (single scissor) | ||||
| Drive type | battery | battery | battery | battery | |
| Load capacity/Rated load | Q(kg) | 1500 | 1500 | 1500 | 1500 |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 |
| Load distance, centre of drive axle fork | x(mm) | 334 | 309 | 246 | 246 |
| Tyre size, front | mm | 280×82+160×60 | 280×82+160×60 | 280×82+160x60x2 | 280×82+160x60x2 |
| Tyre size, rear | mm | 125×82(4) | 125×82(4) | 125x82x4 | 125x82x4 |
| Wheels, number front rear(x=driven wheels) | 1+2 | 1+2 | 1x+2/4 | 1x+2/4 | |
| Tilt of mast/fork carriage forward/backward) | Grad | 2/5 | 2/5 | 2/5 | 2/5 |
| Height, mast lowered | h1(mm) | 2125 2375 2625 | 2675 2185 2345 2505 | 2125 2375 2625 | 2185 2345 2505 2675 2840 |
| Free lift | h2(mm) | ~ ~ ~ | 2000 1575 1700 1825 | ~ ~ ~ | 1776 1776 2010 2080 2240 |
| Max. lift height | h3(mm) | 3000 3500 4000 | 6000 4500 5000 5500 | 3000 3500 4000 | 4500 5000 5500 6000 6500 |
| Height, mast extended | h4(mm) | 3881 4381 4881 | 6881 5381 5881 6381 | 3900 4400 4900 | 5400 5900 6400 6900 7400 |
| Height of overhead guard | h6(mm) | 2246 | 2246 | 2246 | 2246 |
| Overall width | b1/b2(mm) | 1310/1040 | 1310-1400/1040 | 1295/1040 | 1295/1040 |
| Overall length | l1(mm) | 2409 | 2409 | 2615 | 2615 |
| Length to face of forks | l2(mm) | 1339 | 1339 | 1518 | 1518 |
| Fork Dimension | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 35/100/1070 | 35/100/1070 |
| Reach distance | l4(mm) | 500 | 500 | 600 | 600 |
| Fork height, lowered | h8(mm) | 130 | 130 | 130 | 130 |
| Distance of “X” (see below diagram) | mm | 450 | 450 | 450 | 450 |
| Overall length (excluding the fork) | mm | 1868 | 1868 | 1868 | 1868 |
| Ground clearance, centre of wheelbase | m2(mm) | 65 | 65 | 49 | 49 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2814 | 2839 | 2956 | 2956 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2871 | 2902 | 3027 | 3027 |
| Turning radius | Wa(mm) | 1718 | 1718 | 1791 | 1791 |
| Travel speed, laden/unladen | Km/h | 6.5/7 | 6.5/7 | 6.5/7 | 6.5/7 |
| Lift speed, laden/unladen | m/s | 0.135/0.161 | 0.135/0.161 | 0.27/0.43 | 0.27/0.43 |
| Lowering speed, laden/unladen | m/s | 0.15/0.122 | 0.15/0.122 | 0.45/0.364 | 0.45/0.364 |
| Battery voltage, nominal capacity K5 | V/Ah | 24/420(560) | 24/420(560) | 36/700 | 36/700 |
| Battery weight | kg | 450 | 450 | 810 | 810 |
| Battery dimension l/w/h | mm | 770x336X610 | 770x336X610 | 978x395x765 | 978x395x765 |
| Service weight (with battery) | kg | 2450 2500 2560 | 3000 2700 2800 2900 | 3130 3180 3230 | 3470 3570 3670 3370 3770 |
