Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1800KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 3m-6.5m | Controller: | Curtis Or PG |

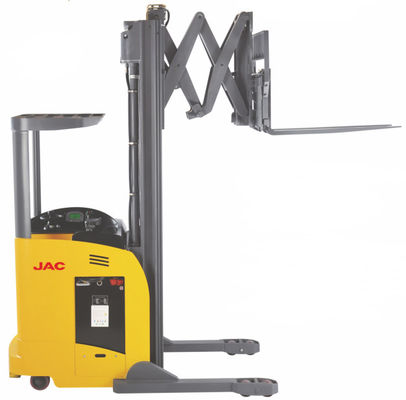

Fork Reach Lift Truck With Load Capacity 1.8 Ton , Forward Double Scissor , Max Lift Height 6.5m , Red / Yellow Color
SAFETY AND STABILITY:
• AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
• Two model function can control the speed of lift and lowering.
• Low center of gravity, excellent stability for operation.
• Small turning radius, good turning performance.
• With advanced variable frequency AC motor free maintenance and excellent performance.
• Can control the speed of driving and lifting in the same time.
• Shock absorber system support good noise reduction.
• Wide view mast and clear visibility.
• With full free lifting, can work in the limited roof environment.
• Import proportional hydraulic valve, adjustable speed for lifting/lowering.
• Muti-function display: battery status, hour meter, fault code, slow running state, etc.
• Big power controller (350A) with big power electric motor (10KW), support excellent reliability.
• Double scissors reach fork let the reach distance up to 1000mm.
• The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.
• With advanced 36V electric control system, smaller electric current, ensure the reliability of the battery system.
• High speed of lifting and lowering, 300% faster than normal type truck.
SERVICEABILITY:
• Side way battery is very convenient to do maintenance and replace batteries.
• CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck`s reliability and easy to repair.
• The Mast can be separate from the frame, very good interchange ability(option).
Parameters:
| Model | CQDH18C(Double Scissor) | CQDH18C(Double Scissor) | |
| Drive type | battery | battery | |
| Capacity/Rated load | Q(kg) | 1000 | 1000 |
| Load centre distance | c(mm) | 600 | 600 |
| Load distance, centre of drive axle to fork | x(mm) | 123 | 123 |
| Tyre size, front | mm | 280×82+160x60x2 | 280×82+160x60x2 |
| Tyre size, rear | mm | 125×82(4) | 125×82(4) |
| Wheels, number front rear(x=driven wheels) | 1x+2/4 | 1x+2/4 | |
| Tilt of mast/fork carriage forkward/backward | Grad | 2/5 | 2/5 |
| Height,mast lowered | h1(mm) | 2125/2375/2625 | 2185/2345/2505/2675/2840 |
| Free lift | h2(mm) | ~ | 1575/1700/1825/2000/2125 |
| Max.lift height | h3(mm) | 3000/3500/4000 | 4500/5000/5500/6000 |
| Height, mast extended | h4(mm) | 3000/3500/4000 | 4500/5000/5500/6000/6500 |
| Height of overhead guard | h6(mm) | 2246 | 2246 |
| Length to face of forks | l2(mm) | 1726 | 1750 |
| Overall length | l1(mm) | 2585 | 2609 |
| Overall width | b1/b2(mm) | 1298/1040 | 1298/1040 |
| Fork Dimension | s/e/l(mm) | 40/100/1070 | 40x100x1070 |
| Reach distance | l4(mm) | 1200 | 1200 |
| Fork height, lowered | h8(mm) | 130 | 130 |
| Distance of “X”(see below diagram) | mm | 450 | 450 |
| Overall length(excluding the fork) | mm | 2023 | 2023 |
| Ground clearance, centre of wheelbase | m2(mm) | 49 | 49 |
| Aisle width for pallets 1000×1200 croossways | Ast(mm) | 3110 | 3131 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3197 | 3220 |
| Turning radius | Wa(mm) | 1848 | 1848 |
| Travel speed, laden/unladen | Km/h | 6.5/7 | 6.5/7 |
| Lift speed, laden/unladen | m/s | 0.2/0.3 | 0.2/0.3 |
| Lowering speed, laden/unladen | m/s | 0.32/0.312 | 0.32/0.312 |
| Battery voltage,nominal capacity K5 | V/Ah | 36/700 | 36/700 |
| Battery weight | Kg | 810 | 810 |
| Battery dimensions l/w/h | mm | 978x395x765 | 978x395x765 |
| Service weight(with battery) | kg | 3460/3510/3560 | 3700/3800/3900/4000/4100 |
